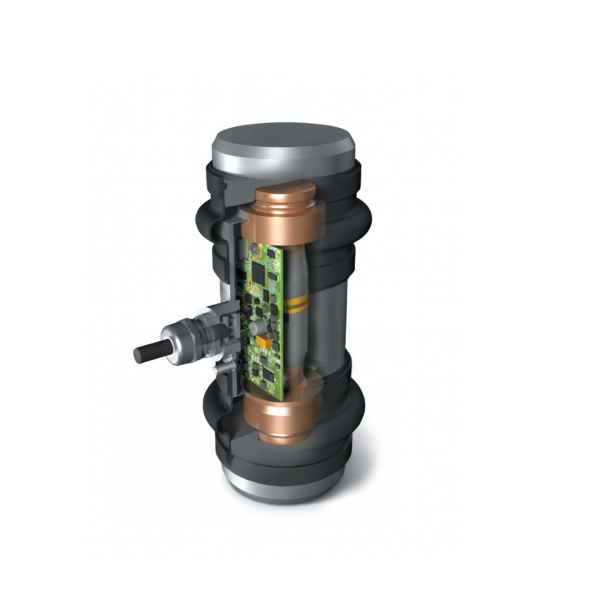

T301X (sering disebut ZT Digital Load Cell atau ZT T301X) adalah digital compression canister load cell generasi terbaru dari Avery Weigh-Tronix (sebelumnya Avery Berkel). Ini evolusi dari model T301 lama, tapi sekarang full digital dengan prosesor internal + 24-bit ADC yang mengubah sinyal analog strain gauge jadi digital stabil (RS485 encrypted) langsung di dalam cell — sinyal bisa jalan hingga ~1 km tanpa noise, tanpa junction box tradisional.
Prinsip Kerja & Desain (Analogi Sederhana): Bayangkan load cell analog seperti mikrofon lama yang kabelnya panjang tapi gampang kena gangguan listrik/petir — suara kecil mudah rusak. T301X seperti “smart camera IP” di dunia timbangan: 8 strain gauge (4 pasang) deteksi deformasi kolom stainless steel saat beban ditekan (compression), lalu ADC 24-bit + prosesor 20-bit internal langsung konversi ke nilai digital super akurat (6 juta internal divisions), kirim via bus RS485 aman (anti-fraud, self-diagnostic). Analoginya upgrade dari HP jadul ke smartphone modern: lebih tajam, tahan banting, bisa self-check baterai/sinyal, dan koneksi wireless (tapi kabel) tanpa ribet hub.
Kapasitas (Rated Capacity / Emax):
- 30 ton (30 t)
- 45 ton (45 t) (ada varian imperial seperti 66,000 lb ≈ 30 t, tapi utama metrik 30/45 t)
Akurasi & Sertifikasi:
- OIML R60 Class C6 (6000 verification intervals/divisions)
- Sertifikat: OIML R60 (contoh 2000-GB1-11 atau serupa)
- NTEP Class III L 10,000d (di beberapa region)
- Internal divisions: 6,000,000 @ rated capacity
- Combined error: <150 ppm R.C.
- Creep & zero return sangat rendah
- Non-repeatability & temp effect minimal (±15 ppm/°C zero, ±6 ppm/°C span)
- Off-center load tahan hingga ±3° tilt dari vertical (rocker-column suspension)
Spesifikasi Elektrik & Komunikasi:
- Supply: ±12 VDC internal regulated
- Communication: RS485 multi-drop, 115.2 kbps, Linear Bus protocol encrypted + anti-fraud
- Update rate: 50 Hz
- Max cells: hingga 32 cells (2 network terpisah, max 16 per network)
- Cable: Amphenol LTW® X-LOK push-lock connectors (IP68/IP69K), polyurethane jacket + optional stainless steel braid, cell-to-cell 1 m/4 m/9 m, home run hingga 200–300 m (tergantung jumlah cell)
- Lightning/EMC: Integral two-stage surge suppressors (IEC 61000-4-5 Level 4), certified severe environment
Ketahanan Lingkungan & Mekanik:
- Material: 100% stainless steel (enclosure 2.35 mm thick 304/17-4 PH aircraft alloy, hardened)
- IP rating: Hermetic IP68 (submersible 1 m – 7 hari), cable entry IP69K (high-pressure washdown)
- Operating temp: -40°C to +65°C (compensated -10°C to +40°C)
- Safe overload: 150% R.C.
- Ultimate/breakage load: 230% R.C.
- Fatigue life: 1,000,000 cycles
- Anti-rotation: Pre-assembled pre-greased load buttons + rubber gaiter bellows + dual cam lock/clamping stainless steel
- Dimensions: Tinggi standar ~200 mm (compact, cocok retrofit)
Fitur Unggulan (Smart & Rugged):
- No junction box — daisy-chain langsung ke indikator ZM510/615 series
- Continuous self-diagnostics: Monitor status, overload count, peak/temp/live weight, communication, error log
- Ghosting feature (non-trade mode): Sistem tetap jalan limited capacity meski satu cell gagal (simulasi output)
- Platform balancing check: Tampilkan dead load % per cell untuk leveling akurat
- Faster install/calibration: Factory pre-calibrated, linearized, temperature compensated — plug-and-play
- Anti-fraud & asset management: Serial traceable, protocol aman
- Multi-platform/axle weighing: Grup cell jadi independent scales (ZM615 support hingga 8 scales)
- Lightning protection built-in + cable dual screen (metal braid + drain) untuk EMI immunity
- Kompatibel ZM510/615 indikator (Lua scripting untuk custom alert/email/SMS)
Aplikasi Umum:
- Weighbridge/truck scale (vehicle weighing, axle-by-axle)
- Railway & vessel weighing
- Heavy hopper, tank, bin/silo
- Area ekstrem: tambang, pelabuhan, quarry, monsoon/flood-prone, lightning-rich zones, food washdown, dusty/corrosive industrial
