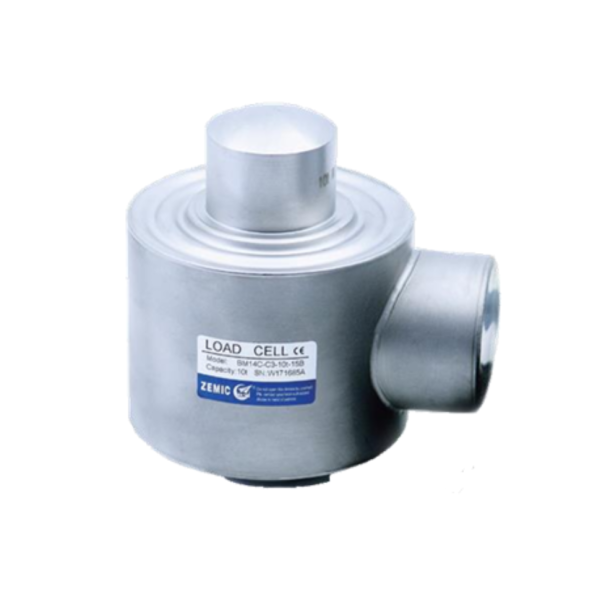

BM14C adalah load cell compression (tipe tekan) heavy-duty full stainless steel, dirancang khusus untuk aplikasi timbangan berat industri yang memerlukan proteksi IP68 hermetically sealed (tahan perendaman air sementara, debu total, korosi ekstrem) serta ketahanan terhadap lonjakan listrik (built-in surge arrestors). Load cell ini ideal untuk vehicle scale (jembatan timbang truk/kendaraan), hopper scale besar, tank/silo weighing, weighbridge, vehicle testing facilities (pengujian berat kendaraan), dan berbagai sistem timbangan berat yang menggunakan struktur multiple load cell (biasanya 4–8 buah) di lingkungan outdoor, pabrik kimia, pertambangan, atau area dengan risiko petir/surge listrik tinggi.
Desain compression-nya memberikan kestabilan tinggi terhadap beban vertikal, deflection sangat kecil (maks 0.055 mm), dan kemampuan menahan side load moderat, sehingga sangat cocok untuk instalasi di pondasi beton atau struktur baja yang mungkin mengalami getaran ringan atau beban dinamis dari kendaraan.
Spesifikasi Teknis Utama:
- Material Element: Stainless steel
- Protection: IP68 (hermetically sealed, tahan perendaman air sementara & debu total)
- Capacity Range (E_max): 0.5 t, 1 t, 2 t, 3 t, 5 t, 10 t, 15 t, 20 t, 25 t, 30 t, 40 t, 50 t
- Accuracy Class: C3 / C4 (OIML R60 compliant; kapasitas rendah excluded dari OIML approval)
- Output Sensitivity: 2.0 ±0.002 mV/V
- Maximum Number of Load Cell Intervals (n_LC): 3000 (C3) / 4000 (C4)
- Ratio Y = E_max / V_min: 10.000 (C3) / 15.000 (C4)
- Combined Error: ≤ ±0.023 % FS (C3) / ≤ ±0.018 % FS (C4)
- Creep (30 menit): ≤ ±0.016 % FS (C3) / ≤ ±0.012 % FS (C4)
- Temperature Effect on Zero (ZTC): ≤ ±0.015 % FS / 10°C (C3) / ≤ ±0.010 % FS / 10°C (C4)
- Temperature Effect on Sensitivity (STC): ≤ ±0.011 % FS / 10°C (C3) / ≤ ±0.009 % FS / 10°C (C4)
- Zero Balance: ≤ ±1.0 % FS
- Input Resistance: 700 ±7 Ω
- Output Resistance: 703 ±4 Ω
- Insulation Resistance: ≥ 5000 MΩ (at 50 VDC)
- Compensated Temperature Range: -10°C ~ +40°C
- Operating Temperature Range: -35°C ~ +65°C
- Storage Temperature: -40°C ~ +70°C
- Excitation Voltage Recommended: 5 – 12 V DC
- Excitation Maximum: 18 V DC
- Safe Overload: 150 % FS
- Ultimate Overload: 300 % FS
- Maximum Deflection: 0.055 mm
- Cable: Shielded 4-conductor AWG22, diameter Ø5 mm, length 15 m (C3) / 18 m (C4 di atas 30 t), jacket polyurethane, shield not connected to element
- Wiring (4-Wire Connection):
- Input (+) : Red
- Input (-) : Black
- Output (+) : Green
- Output (-) : White
Dimensi Outline (dalam mm, berdasarkan tabel kapasitas):
- 0.5–30 t: ØD 40, L 20, R-E 37.5, R-F 150, H 16, H1 32.5
- 40–50 t: ØD 50, L 25, R-E 200, R-F 200, H 24, H1 24.5
Model Tersedia (dengan Kode Artikel Standar):
- BM14C-C3-0.5t-15B-SC
- BM14C-C3-1t-15B-SC
- BM14C-C3-2t-15B-SC
- BM14C-C3-3t-15B-SC
- BM14C-C3-5t-15B-SC
- BM14C-C3/C4-10t-15/18B-SC
- BM14C-C3/C4-15t-15/18B-SC
- BM14C-C3/C4-20t-15/18B-SC
- BM14C-C3/C4-25t-15/18B-SC
- BM14C-C3/C4-30t-15/18B-SC
- BM14C-C3/C4-40t-15/18B-SC
- BM14C-C3/C4-50t-15/18B-SC
Aksesoris Mounting Tersedia:
- BM-14-414-0.5-50t Mount (stainless, easy access, lift-off protection, rocker support)
- BM-14-910-0.5-30t Mounting Set (complete set dengan dummy LC, self-aligning, lift-off protection)
- BY-14-103-10-50t Rocker Support (stainless, self-aligning, anti-reversal)
- HM-14-403-30-50t Support Plates (nickel-plated alloy, compact, self-aligning)
- HM-14-434-30-50t Tank Mount (nickel-plated, easy access, lift-off protection)
- HM-14-931-0-5t-30t Mounting Set (alloy plated, self-aligning, optional stay-rod, lift-off protection)
