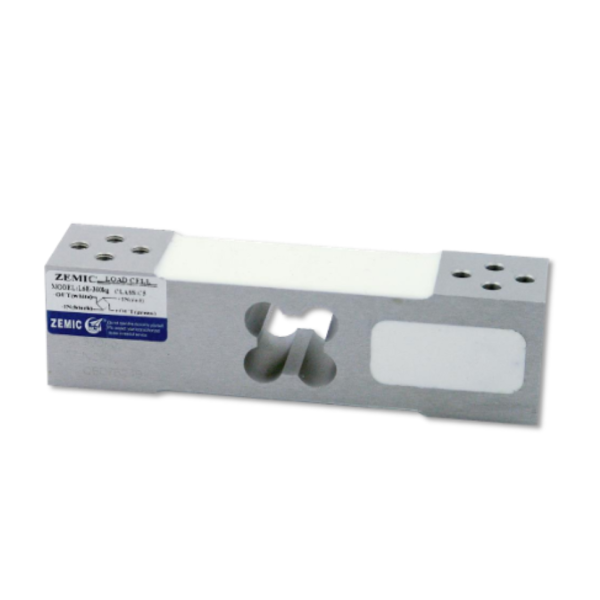

L6E Series – Aluminium Alloy Single Point Load Cell IP65 (30 kg – 500 kg)

L6E adalah load cell single point (parallel beam) aluminium alloy dengan pelapisan colourless anodized, dirancang untuk timbangan retail, laboratorium, dan industri ringan yang memerlukan akurasi tinggi, bobot ringan, serta proteksi IP65 (tahan debu & cipratan air ringan). Load cell ini sangat populer untuk pricing scale (timbangan harga di pasar/supermarket), bench scale (timbangan meja), platform scale sedang (400 × 400 mm), counting scale (penghitung jumlah barang), dan berbagai electronic weighing devices yang menggunakan platform ukuran kompak hingga sedang.

Desain parallel beam-nya memberikan akurasi tinggi dengan corner effect rendah (eccentric loading error minim), deflection terkendali, dan kestabilan suhu baik, sehingga tetap presisi meski beban tidak tepat di tengah platform. Aluminium alloy anodized membuatnya ringan (weight rendah ~0.5–1 kg tergantung kapasitas), tahan korosi ringan, dan sangat ekonomis dibanding stainless steel – ideal untuk aplikasi indoor/retail di mana IP68 tidak dibutuhkan. Opsi C5 memberikan resolusi sangat tinggi (hingga 5000 divisi) untuk timbangan presisi ekstra.

Spesifikasi Teknis Utama:

Material Element: Aluminium alloy (colourless anodized)
Protection: IP65 (tahan debu & cipratan air ringan sesuai EN 60529)
Capacity Range (E_max): 30 kg, 50 kg, 60 kg, 80 kg, 100 kg, 150 kg, 200 kg, 300 kg, 500 kg
Accuracy Class: C3 / C4 / C5 (OIML R60 compliant, test certificate TC7868 Revision 1, C of C R60/2000-NL1-15.08)
Output Sensitivity: 2.0 ±0.2 mV/V
Maximum Number of Load Cell Intervals (n_LC): 3000 (C3) / 4000 (C4) / 5000 (C5)
Ratio Y = E_max / V_min: 10.000 (C3) / 15.000 (C4) / 20.000 (C5)
Combined Error: ≤ ±0.023 % FS (C3) / ≤ ±0.018 % FS (C4) / ≤ ±0.014 % FS (C5)
Creep (30 menit): ≤ ±0.0167 % FS (C3) / ≤ ±0.0125 % FS (C4) / ≤ ±0.009 % FS (C5)
Temperature Effect on Zero (ZTC): ≤ ±0.0175 % FS / 10°C (C3) / ≤ ±0.0131 % FS / 10°C (C4) / ≤ ±0.010 % FS / 10°C (C5)
Temperature Effect on Sensitivity (STC): ≤ ±0.020 % FS / 10°C (C3) / ≤ ±0.0131 % FS / 10°C (C4) / ≤ ±0.010 % FS / 10°C (C5)
Zero Balance: ≤ ±2.0 % FS
Input Resistance: 406 ±6 Ω
Output Resistance: 350 ±3 Ω
Insulation Resistance: ≥ 5000 MΩ (at 50 VDC)
Compensated Temperature Range: -10°C ~ +40°C
Operating Temperature Range: -35°C ~ +65°C
Storage Temperature: -40°C ~ +70°C
Excitation Voltage Recommended: 5 – 12 V DC
Excitation Maximum: 18 V DC
Safe Overload: 150 % FS
Ultimate Overload: 300 % FS
Maximum Deflection: 0.6–1.3 mm (tergantung kapasitas)
Platform Size Recommended: Maksimal 400 × 400 mm
Cable: Shielded 4-conductor AWG24, diameter Ø5.3 mm ±0.2 mm, length standar 2 m, jacket PVC, shield not connected to element
Wiring (4-Wire Connection):
- Excitation (+) : Red
- Excitation (-) : Black
- Signal (+) : Green
- Signal (-) : White

Dimensi Outline (dalam mm):

30–500 kg (seragam): L 130.21 (5.12 inch), W 37 (1.46 inch), H 30 (1.18 inch), mounting 4 lubang M6, jarak mounting ~106 mm, torque screw M6 20 Nm (tanpa oli, atau 10 Nm dengan oli)

Model Tersedia (dengan Kode Artikel Standar):
