B6F / H6F – Stainless Steel Single Point Load Cell

B6F / H6F – Stainless Steel Single Point Load Cell

Load cell single point stainless steel IP67 (B6F series, bending beam) dengan kapasitas 100 kg hingga 2000 kg, akurasi kelas C3 OIML R60, output sensitivity 2.0 ±0.2 mV/V, kabel shielded 6-conductor (sense wires), cocok untuk belt scale, platform scale, container/tank weighing, dan timbangan elektronik lainnya. Platform maksimal: 400×400 mm (100–500 kg), 600×800 mm (250–500 kg), 1200×1200 mm (750–2000 kg), konstruksi potted tahan korosi/minyak/air.

Category: Brand:

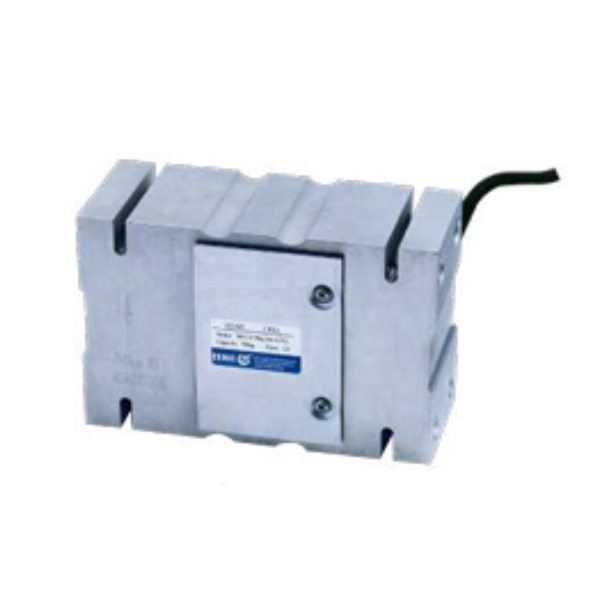

B6F adalah seri load cell single point (bending beam type) premium full stainless steel, dirancang khusus untuk aplikasi timbangan platform sedang hingga besar yang memerlukan akurasi tinggi, kestabilan suhu baik, dan proteksi IP67 penuh terhadap air, debu, cipratan minyak, serta korosi. Load cell ini ideal untuk belt scales (konveyor timbang), platform scales (timbangan lantai), container/tank weighing, mobile weighing systems (seperti garbage trucks), hopper scales, dan berbagai electronic weighing devices yang menggunakan single atau dual load cell structure.

Spesifikasi Teknis Utama:

  • Material Element: Stainless steel (17-4PH atau setara, potted by adhesive inside untuk oil proof, waterproof, anti-corrosive)
  • Protection: IP67 (tahan air/debu sesuai EN 60529)
  • Capacity Range: 100 kg, 150 kg, 200 kg, 250 kg, 500 kg, 750 kg, 1000 kg, 2000 kg
  • Accuracy Class: C3 (OIML R60 C3 approved, test certificate TC7867, C of C R60/2000-NL1-10.31)
  • Output Sensitivity: 2.0 ±0.2 mV/V (varian “S1”: 2.0 ±0.002 mV/V dengan input resistance 384 ±4 Ω)
  • Maximum Capacity (E_max): Sesuai model (100–2000 kg)
  • Maximum Number of Load Cell Intervals (n_LC): 1000–3000 (tergantung kapasitas)
  • Ratio Y = E_max / V_min: 500–2000 (tergantung model)
  • Combined Error: ≤ ±0.023 % FS
  • Safe Overload: 150 % FS
  • Ultimate Overload: 300 % FS
  • Zero Balance: ≤ ±1.0 % FS
  • Excitation Voltage Recommended: 5 – 12 V DC
  • Excitation Maximum: 18 V DC
  • Input Resistance: 400 ±20 Ω
  • Output Resistance: 350 ±3.5 Ω
  • Insulation Resistance: ≥ 5000 MΩ (at 50 VDC)
  • Compensated Temperature: -10°C ~ +40°C
  • Operating Temperature: -35°C ~ +65°C
  • Storage Temperature: -40°C ~ +70°C
  • Cable: Shielded 6-conductor (dengan sense wires), diameter Ø6.2 mm, standard length 3 m, jacket PVC, shield not connected to element
  • Wiring (6-Wire Connection):
    • Input (+) : Red
    • Sense (+) : White
    • Output (-) : Yellow
    • Input (-) : Black
    • Sense (-) : Brown
    • Output (+) : Blue

Dimensi Outline (dalam mm, berdasarkan tabel kapasitas):

  • 100–150 kg: B 44, B1 24, H 75, H1 50, H2 30, L 156, L1 112, L2 14, M M12
  • 200–250 kg: B 60, B1 36, H 95, H1 70, H2 30, L 146, L1 110, L2 11, M M12
  • 500 kg: B 60, B1 36, H 95, H1 70, H2 30, L 146, L1 110, L2 11, M M12
  • 750–2000 kg: B 76 (estimasi), H 125, H1 95, H2 65, L 176, L1 110, L2 24, M M16

Platform Size Direkomendasikan:

  • 100–200 kg: 400 × 400 mm
  • 250–500 kg: 600 × 800 mm
  • 750–2000 kg: 1200 × 1200 mm (atau sesuai struktur single/dual load cell)

Model Tersedia (dengan Kode Artikel Standar):

  • B6F-C3-100kg-386
  • B6F-C3-150kg-386
  • B6F-C3-200kg-386
  • B6F-C3-250kg-386
  • B6F-C3-500kg-386
  • B6F-C3-750kg-386
  • B6F-C3-1000kg-386
  • B6F-C3-2000kg-386

Sertifikasi & Compliance:

  • OIML R60 C3 approved
  • CE, RoHS compliant
  • ATEX optional (II1G Ex ia IIC T4, II1D Ex iaD T73°C, dll. tergantung kapasitas)
  • Test certificate TC7867, C of C R60/2000-NL1-10.31
