B6E Load Cell

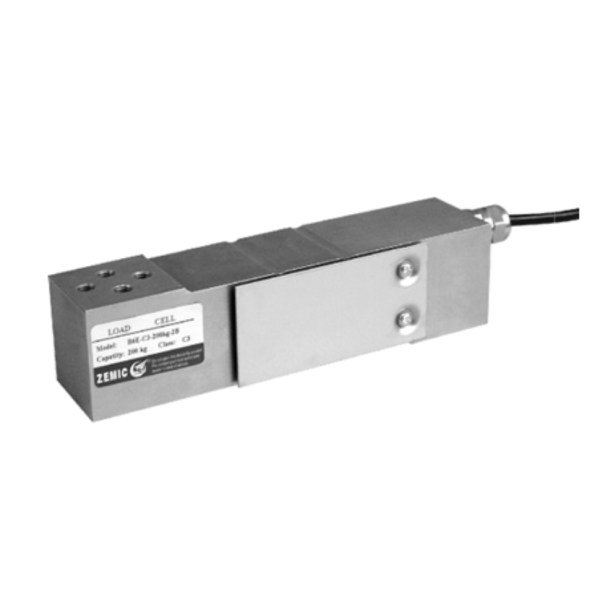

B6E adalah load cell single point (parallel beam) premium berbahan stainless steel 17-4PH, dirancang untuk aplikasi timbangan platform kecil hingga sedang yang memerlukan ketahanan lingkungan tinggi (oil proof, waterproof, anti-corrosive gas). Dengan potting adhesive di dalam, load cell ini tahan terhadap kelembaban, minyak, dan kondisi industri keras, cocok untuk pricing scale, bench scale, belt scale, electronic platform scale, dan perangkat weighing lainnya.

Spesifikasi Teknis Utama:

Material: 17-4PH stainless steel construction
Protection: IP67 (hermetically sealed, potted adhesive inside)
Capacity Range: 20 kg, 30 kg, 50 kg, 75 kg, 100 kg, 150 kg, 200 kg, 250 kg, 300 kg
Accuracy Class: C2 (untuk kapasitas rendah) / C3 (untuk kapasitas tinggi, OIML compliant)
Maximum Verification Intervals (n_max):
- C2: 2000
- C3: 3000
Maximum Load Cell Intervals (n_lc):
- C2: 2000 (Emax 5000)
- C3: 3000 (Emax 10000)
Combined Error: ≤ ±0.030 % FS (C2) / ≤ ±0.020 % FS (C3)
Creep (30 menit): ≤ ±0.024 % FS (C2) / ≤ ±0.016 % FS (C3)
Temperature Effect on Sensitivity (STC): ≤ ±0.017 % FS/10°C (C2) / ≤ ±0.011 % FS/10°C (C3)
Temperature Effect on Zero (ZTC): ≤ ±0.023 % FS/10°C (C2) / ≤ ±0.015 % FS/10°C (C3)
Output Sensitivity: 2.0 ±0.002 mV/V (S1 type)
Input Resistance: 384 ±20 Ω (atau 400 ±20 Ω tergantung varian)
Output Resistance: 351 ±2 Ω
Insulation Resistance: ≥ 5000 MΩ (at 50 VDC)
Zero Balance (Compensated): ≤ ±1.5 % FS
Compensated Temperature Range: -10°C ~ +40°C
Operating Temperature Range: -35°C ~ +65°C (atau -10°C ~ +40°C compensated)
Excitation Voltage Recommended: 5 – 12 V DC
Excitation Maximum: 18 V DC
Safe Overload: 150 % FS
Ultimate Overload: 300 % FS
Corner Correction: Input correction 0.02 % / 100 mm
Cable: Shielded 4-conductor, diameter 5 mm, standard length 2 m
Wiring (4-Wire Connection):
- Input (+) : Red
- Input (-) : Black
- Output (+) : Green
- Output (-) : White
