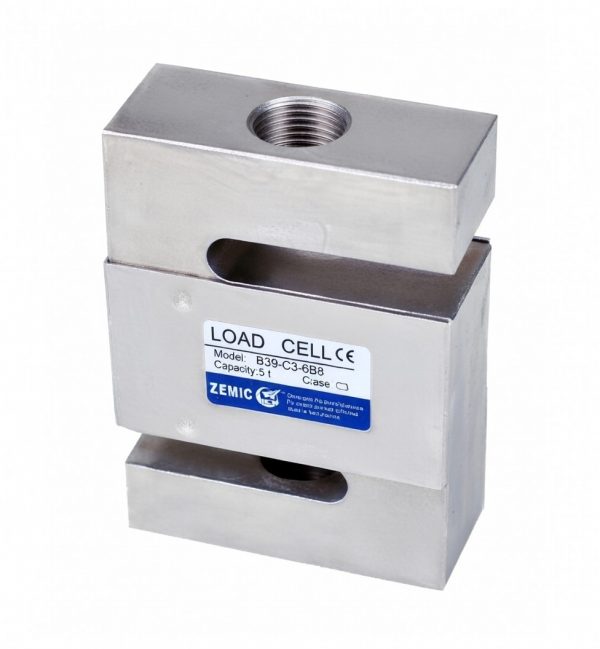

B3G-C series (model seperti B3G-C3-50kg hingga B3G-C3-10t) adalah load cell tipe “S” (S-beam) berbahan stainless steel full, dirancang untuk pengukuran tarik (tension) dan tekan (compression) dengan ketahanan tinggi terhadap lingkungan keras (IP67 waterproof & dustproof). Load cell ini ideal untuk berbagai aplikasi industri seperti timbangan gantung (hanging scale), hopper weigher, crane scale, tank/silo weighing, packaging scale, hybrid scale, dan perangkat weighing lainnya yang memerlukan akurasi tinggi serta daya tahan lama.
Spesifikasi Teknis Utama (Berdasarkan Kelas Akurasi C3):
- Material Element: Stainless steel
- Protection: IP67 (tahan air & debu sesuai EN 60529)
- Accuracy Class: OIML R60 C3
- Output Sensitivity: 3.0 ±0.008 mV/V
- Maximum Capacity (E_max): 50 kg – 10 t (tergantung model)
- Max. Number of Load Cell Intervals (n_lc): 3000
- Combined Error: ≤ ±0.020 % FS
- Creep Error (30 menit): ≤ ±0.016 % FS
- Temperature Effect on Zero (ZTC): ≤ ±0.015 % FS/10°C
- Temperature Effect on Sensitivity (STC): ≤ ±0.011 % FS/10°C
- Zero Balance: ≤ ±1.0 % FS
- Safe Overload: 150 % FS
- Ultimate Overload: 300 % FS
- Excitation Voltage Recommended: 5 – 12 V
- Excitation Maximum: 18 V
- Input Resistance: 430 ±50 Ω
- Output Resistance: 351 ±2 Ω
- Insulation Resistance (50V): ≥ 25000 MΩ
- Compensated Temperature: -10°C ~ +40°C
- Operating Temperature: -35°C ~ +65°C
- Storage Temperature: -40°C ~ +70°C
- Cable: Shielded 4-conductor AWG22, diameter 5.0 mm, length 6 m, jacket polyurethane, shield not connected to element
- Wiring (4-Wire Connection):
- Input (+) : Red
- Input (-) : Black
- Output (+) : Green
- Output (-) : White
Dimensi (dalam cm, approximasi berdasarkan tabel kapasitas):
- 50–100 kg: L 50.8, H 60.96, H1 8.89, W1 11.68–15.06, W 15.06–21.41, M M8
- 250–500 kg: L 50.8, H 60.96, H1 8.89, W1 11.03–24.38, W 21.41–27.76, M M12
- 1 t: L 50.8, H 60.906, H1 8.897, W1 24.38, W 27.76, M M12
- 2.5 t: L 76.2, H 99.06, H1 13.97, W1 24.38, W 27.76, M M20×1.5
- 5 t: L 76.48, H 99.06, H1 18.37, W1 30.74, W 34.12, M M20×1.5
- 7.5 t: L 87.38, H 139.7, H1 27.5, W1 37.08, W 40.46, M M24×2
- 10 t: L 112.78, H 177.8, H1 39.9, W1 42.93, W 46.31, M M30×2
Model Tersedia (dengan Kode Artikel):
- 50 kg: B3G-C3-50kg-6B
- 100 kg: B3G-C3-100kg-6B
- 250 kg: B3G-C3-250kg-6B
- 500 kg: B3G-C3-500kg-6B
- 1 t: B3G-C3-1t-6B
- 2.5 t: B3G-C3-2.5t-6B
- 5 t: B3G-C3-5t-6B
- 7.5 t: B3G-C3-7.5t-6B
- 10 t: B3G-C3-10t-6B
Aksesoris Tersedia (Hook & Eye Assembly Alloy Steel):
- HL-3-025kg-St hook / eye / rod end / hook assembly / eye assembly (untuk 25–5 t, cocok hybrid/crane/packaging/hopper scale).
Sertifikasi & Compliance:
- OIML R60 C3 approved (Test cert. D09-06.07, C of C R60/2000-CNI-06.02)
- ATEX classification optional (II2G Ex II2C T4/T6 atau sejenis)
- CE, RoHS compliant, IP67, Ex (opsional), FM, PG, NEPSI
